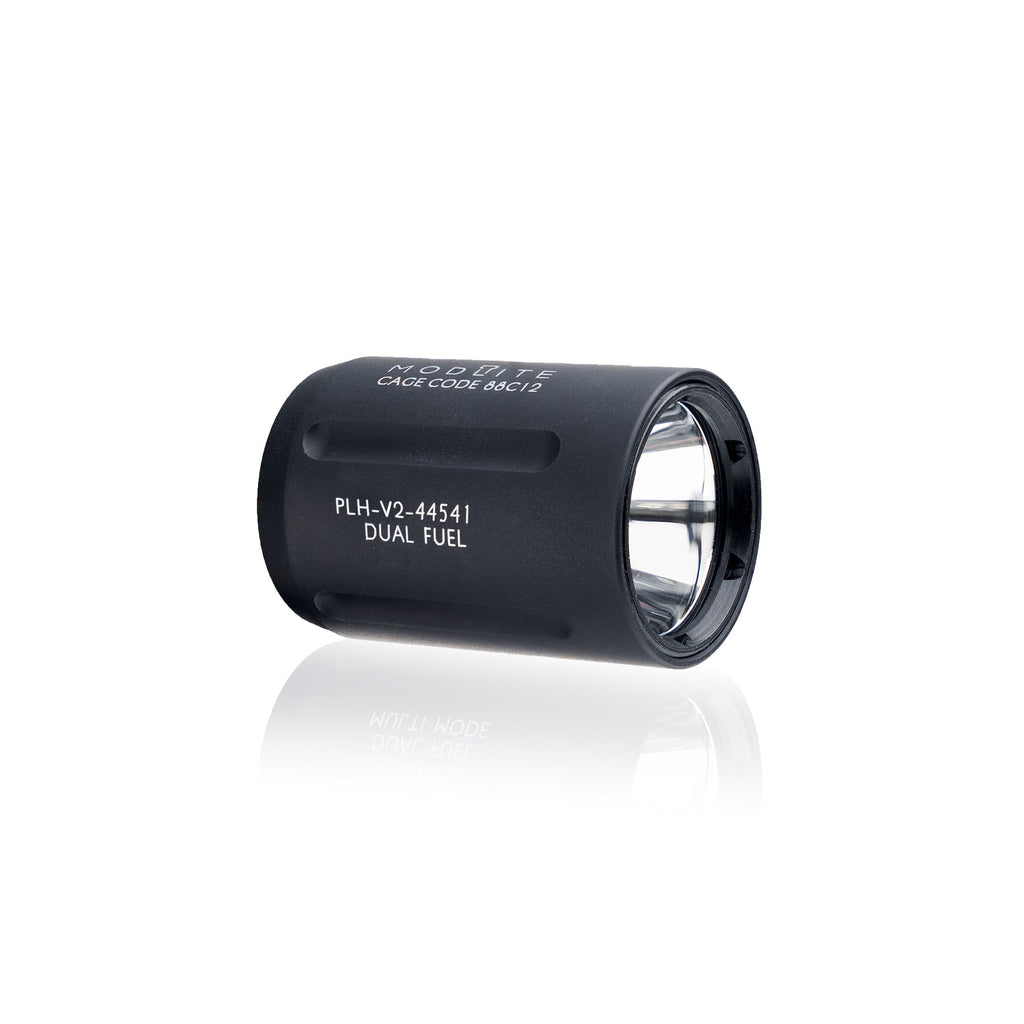

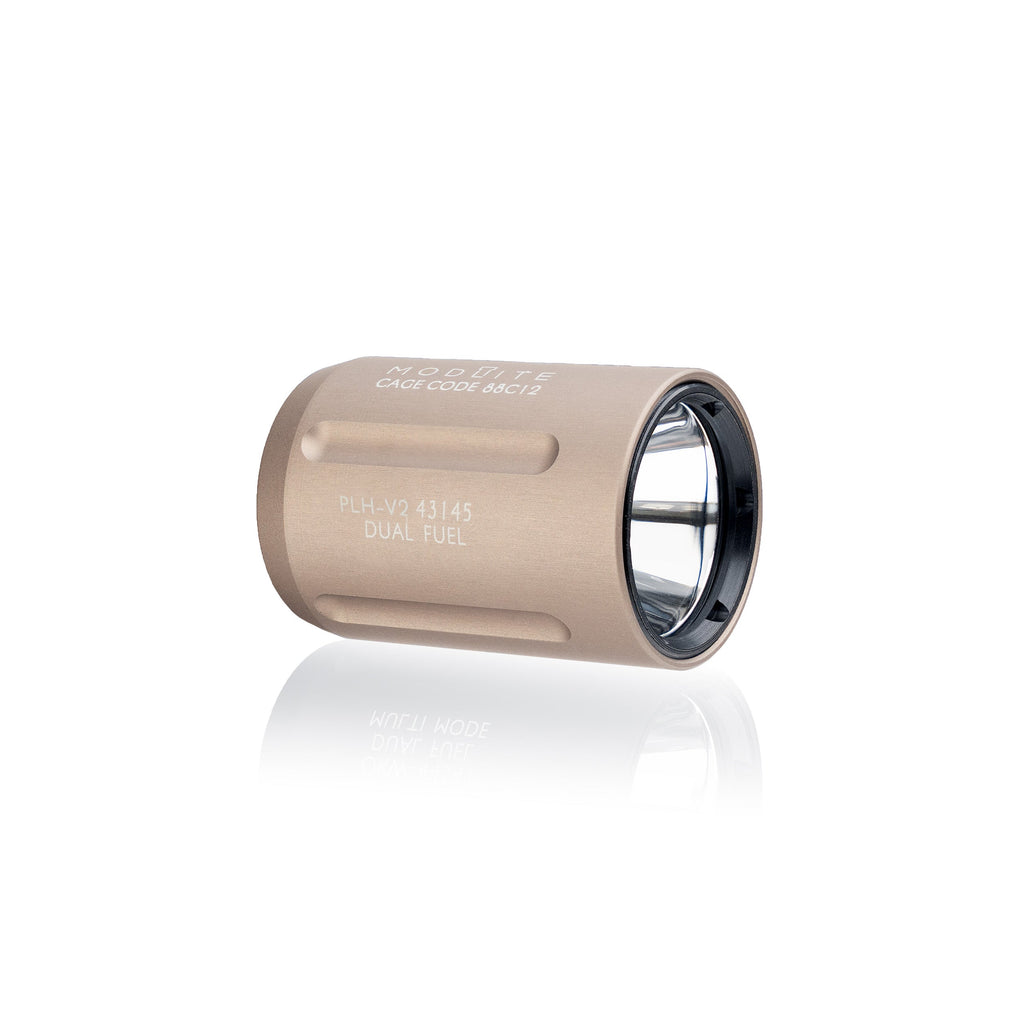

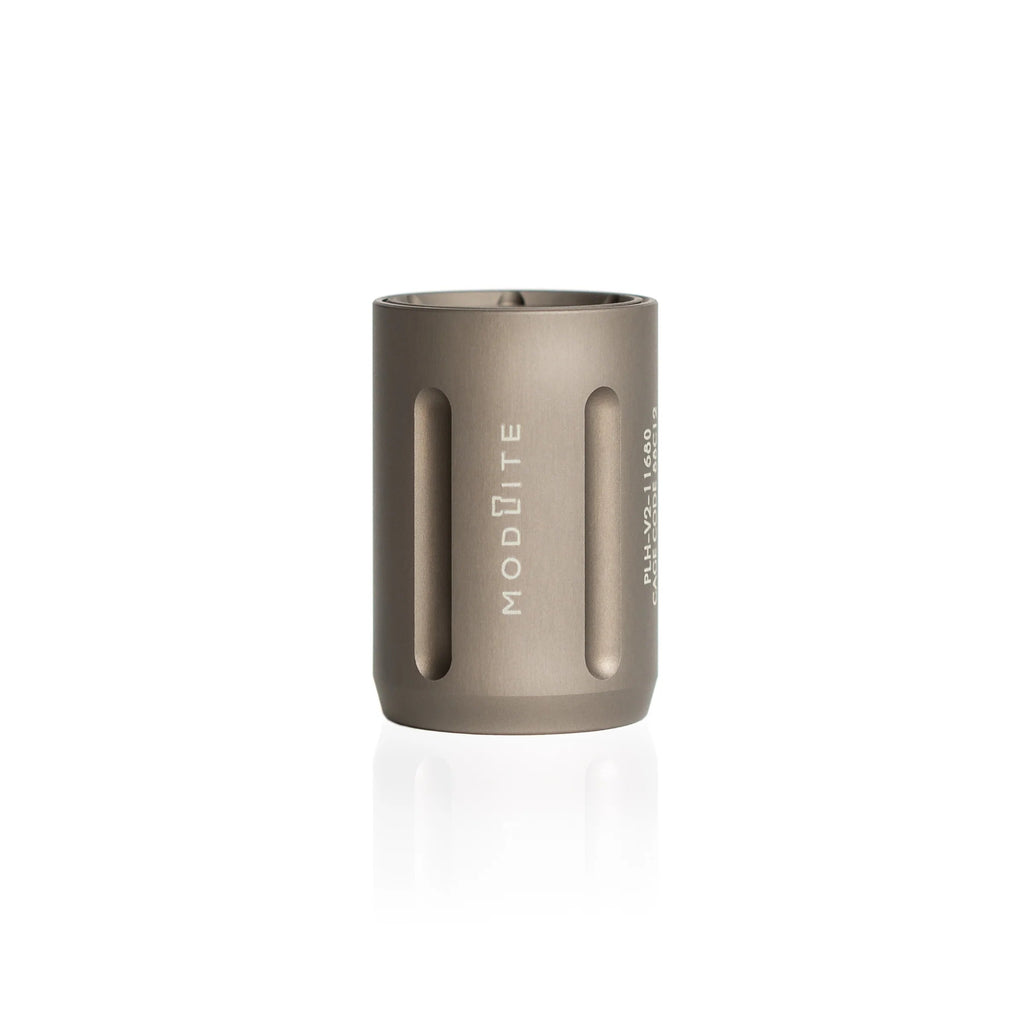

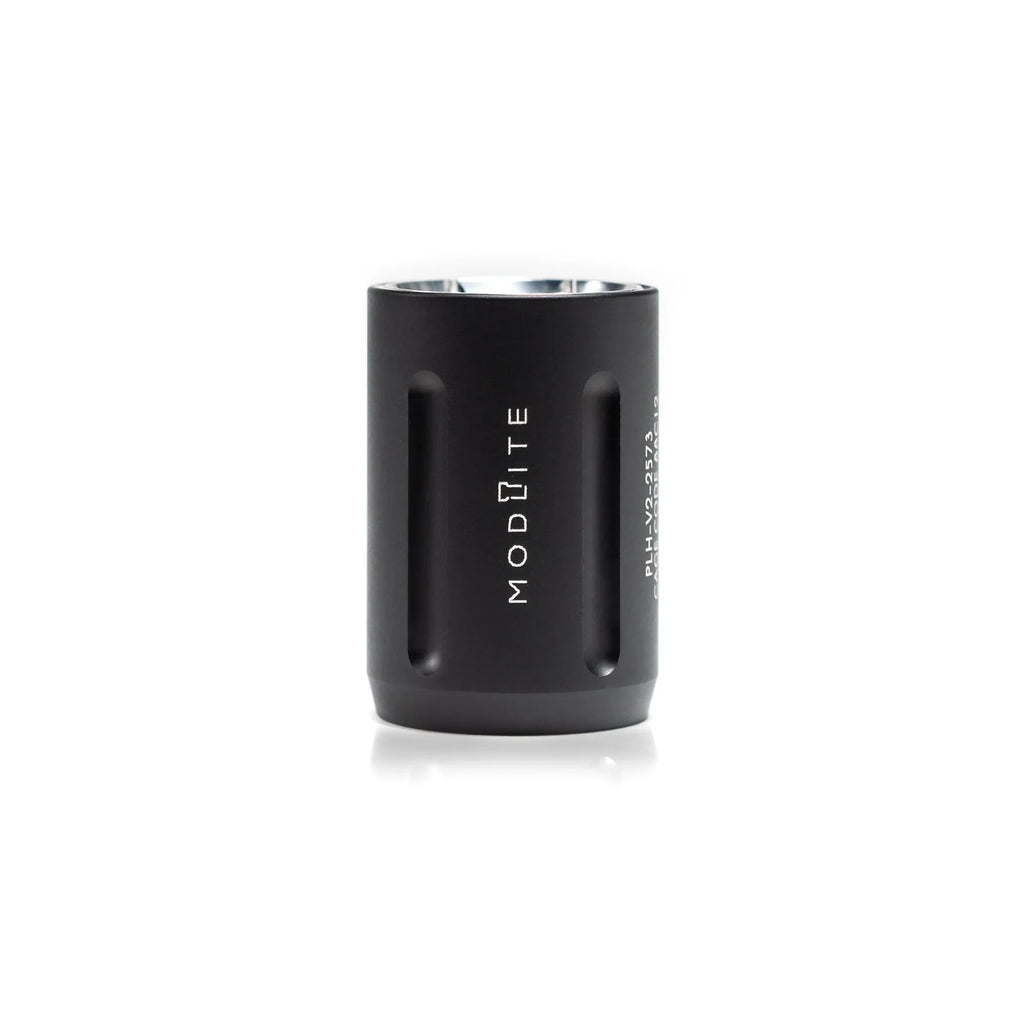

PLHV2 Modlite Light Head

For Multi-Mode Heads ONLY

- Single Mode Features a single high only mode with full output.

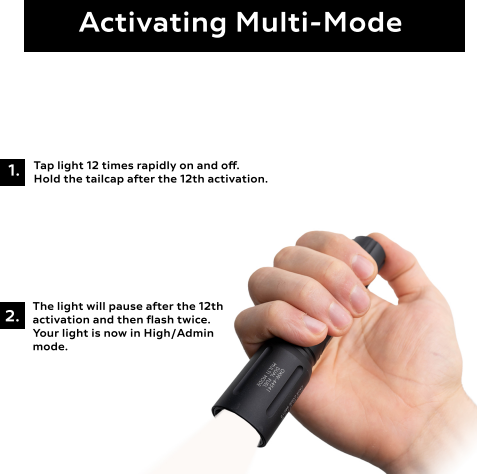

- Multi-Mode features 2 selectable modes High Mode/ High Mode + Admin Mode. This allows the user to easily program the light to their needs.

The PLHV2 Modlite Multi-Mode head is compatible with Modlite 18650 and 18350 bodies, and other similar Dual Fuel style bodies on the market. These PLHV2 heads are best suited for use on a Handheld light.

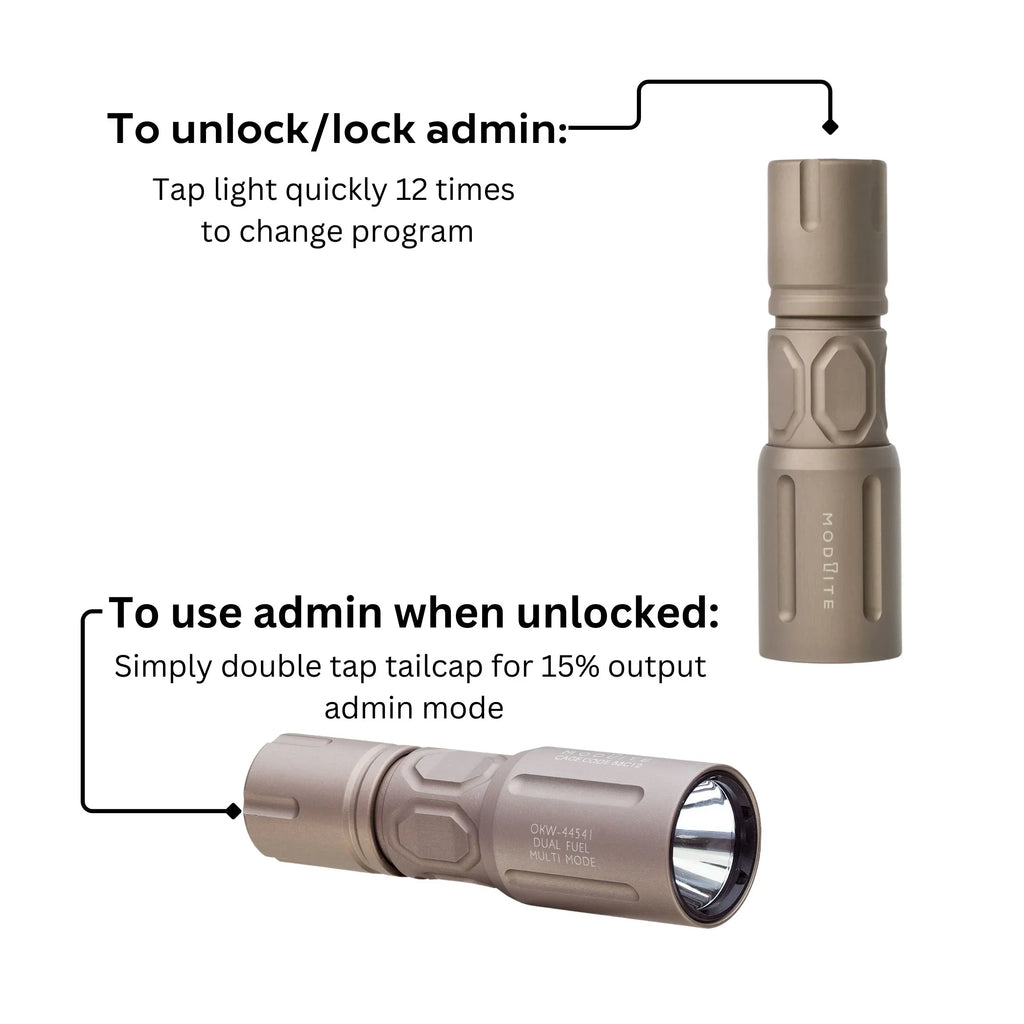

Multi-Mode features 2 selectable modes High Mode/ High Mode + Admin Mode. This allows the user to easily program the light to their needs.

Runtime with 18650:

High Mode will have a 75 minute runtime and is the default configuration the light will ship with.

Admin Mode will have both the High and the Admin mode to be able to quickly switch between. High mode will have a 75 minute constant runtime. Admin mode will have a 10.6 hour runtime and is 15% of the high output.

Runtime with 18350:

High Mode will have a 35 minute runtime and is the default configuration the light will ship with.

Admin Mode will have both the High and the Admin mode to be able to quickly switch between. High mode will have a 35 minute constant runtime. Admin mode will have a 3.6 hour runtime and is 15% of the high output.

Due to the chemical process that takes place during Type 3 Hardcoat, the finish on the product can vary from one to the next, even if it is the same batch. We strive to create as tight of a range as possible, and match parts to the best of our ability, but be aware that there may be slight variation between sections of the light.

Features:

• Multi-Mode (if selected)
• Dual Fuel 18350/18650 or x2 CR123
• 1350 lumens
• 54,000 candela
• Cool White 5700K emitter tint
• Made and assembled in the USA
• Drivers are fully potted and tested to withstand select fire SCAR 17 recoil.
• Lifetime guarantee
• 6061 Series Alum bezel with Mil-Spec Hard Anodizing.
• Ultra clear BOROFLOAT^® lens allows 98-99% light transmittance.
